1. Full rotation type; start-up, cease, water-line spilled over safety warning switch (start-up Warner or turn off air-conditioner)
2. Designed as two parts, used for easily and quickly install.
3. Pump is auto-suction type, can be installed in air-conditioner, or place in it above tank within 1 meter
4. Water storage tank connects on 13-17mm wash port in air-conditioner.
5. Max flow: 14kl/h (3.7US gallon)
6. Max head: 12m (39feet)
7. Operating range: 6kl/h while head is 4m (1.6US gallon / h while head is 13.1 feet)
8. Used for air-conditioner equipment, max is 10kw (30,000BTU) (4kw used in wet areas)
9. Exhaust pipe enclose water storage tank
10. Overheating auto power off protective device
11. Design of pump exit used for:4X6mm (5/32 inch inner diameter of water pipe)
12. IP=20
1. Self-absorption water:1m x 4mm (31/4’ x 5/32’’ inner diameter) exhaust
2. Pipe: 150mm x 4mm (6’’ x 5/32’’ inner diameter)
3. Drain pipe of air-conditioner: 75mm x 13mm (3’’ x 1/2’’ inner diameter)
4. Air-conditioning condenser pump
|
Model
|

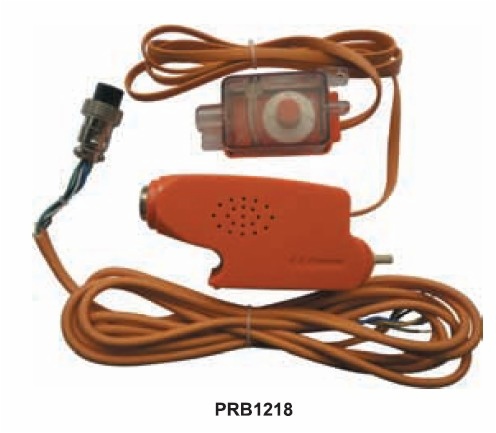

PRB1218
|

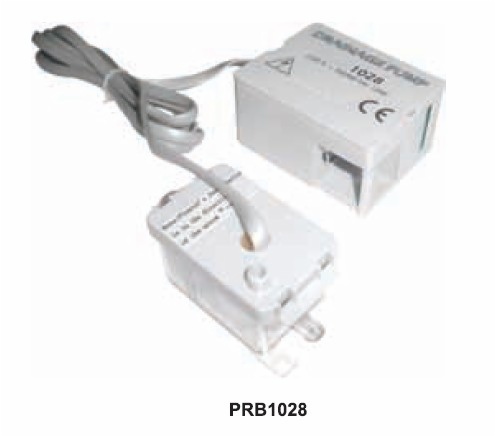

PRB1028
|
|
Current Source
|
AC220-240V / 50/60Hz
|
AC220-240V / 50/60Hz
|
|
Max head
|
12m
|
12m
|
|
Discharge of Water
|
233cc/min
|
233cc/min
|
|
Max Flow
|
14L/h(3.7US gallon)
|
14L/h(3.7US gallon)
|
|
Electric Consumption
|
20w
|
20w
|
|
Outlet Piping
|
4x6mm
|
4x6mm
|
|
Protection Class
|
IP20
|
IP20
|
|
Applications
|
The air conditioning equipment with most power 10kw（30,000BTU）
|
|
Dimensions LxWxH
|
180x150x105mm
|
