Dry and inspiration demountable drier
The suction filter is installed in the suction line of new system.
This prevents harmful contaminants from entering into the compressor as an enhanced protection prolonging the life of compressor.
This replaceable suction filter is especially suitable for use in conditions where motor damage has occurred or heavy ingress of water in the system. It has superb cleaning and absorption capabilities. (to be equipped the available core.)
Core changeable demountable drier
Demountable drier is very import to the refrigeration system. Because the moisture and acidity impurity are need to be absorbed and the impurity needs to be filtrated in the system.
The solid core can be changed very easily as it with high quality flange and spring.
The core changeable demountable drier can be used as a filter while removed the core.
This demountable drier always used on the inspiration pipe of refrigeration system and air conditioning.
The demountable drier must be installed according to the arrow direction.
Solid core: D-48, D-100, H-48, H-100. D-48 and D-100 have the character of removing acidic. H-48 and H-100 have the character of shopping water.
Technic parameter
|
Refrigeration oil
|
R22/R134a/R404A/R407C/R507
|
Medium temperature
|
-40→+120℃
|
|
Max. worRing pressure
|
3400Rpa
|
Max. testing pressure
|
4100Rpa
|
Type Choosing Parameter
|
Type
|
Normal refrigeration capacity (Rw)
|

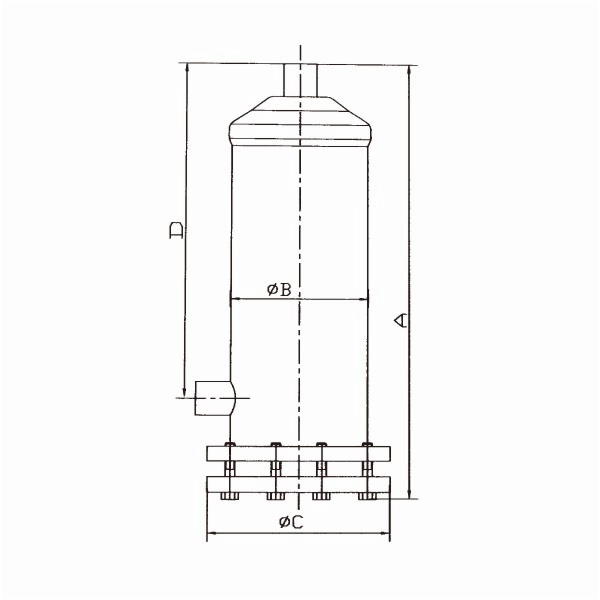

Three-dimensional data
|
|
R22
|
R134a
|
R404a
|
A (mm)
|
B (mm)
|
C (mm)
|
D (mm)
|
|
PRA-485
|
35.2
|
28.2
|
28.2
|
236
|
114
|
150
|
155
|
|
PRA-487
|
45.8
|
35.2
|
35.2
|
238
|
114
|
150
|
157
|
|
PRA-489
|
52.8
|
35.2
|
35.2
|
240
|
114
|
150
|
159
|
|
PRA-4811
|
70.4
|
45.8
|
45.8
|
243
|
114
|
150
|
162
|
|
PRA-967
|
88
|
70.4
|
52.8
|
383
|
114
|
150
|
301
|
|
PRA-969
|
105.6
|
88
|
70.4
|
385
|
114
|
150
|
303
|
|
PRA-9611
|
123.2
|
105.6
|
88
|
388
|
114
|
150
|
306
|
|
PRA-9613
|
140.8
|
123.2
|
105.6
|
390
|
114
|
150
|
308
|
|
PRA-1449
|
140.8
|
105.6
|
105.6
|
521
|
114
|
150
|
438
|
|
PRA-14411
|
176
|
140.8
|
123.2
|
524
|
114
|
150
|
441
|
|
PRA-14413
|
193.6
|
158.4
|
140.8
|
526
|
114
|
150
|
443
|
|
PRA-14417
|
211.2
|
176
|
158.4
|
532
|
114
|
150
|
449
|
|
PRA-19211
|
246.4
|
176
|
158.4
|
675
|
114
|
150
|
595
|
|
PRA-19213
|
281.6
|
211.2
|
193.6
|
677
|
114
|
150
|
597
|
|
PRA-19217
|
299.2
|
228.8
|
211.2
|
383
|
114
|
150
|
603
|
|
PRA-30013
|
352
|
264
|
228.8
|
627
|
152
|
200
|
500
|
|
PRA-30017
|
352
|
264
|
228.8
|
632
|
152
|
200
|
505
|
|
PRA-30021
|
372
|
281
|
245.8
|
638
|
152
|
200
|
511
|
|
PRA-40017
|
457.6
|
352
|
316.8
|
810
|
152
|
200
|
683
|
Indication: the size change is not informing, taRe plant production blueprint as.
