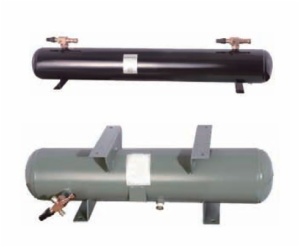

Horizontal Receiver PRC-14CL/ PRC-19CL/ PRC-24CLA/ PRC-24CLB

Select All

Horizontal Receiver

Horizontal Receiver

Horizontal Receiver

Horizontal Receiver

Item Code:PRC-14CL/ PRC-19CL/ PRC-24CLA/ PRC-24CLB Features:

Description

Applications

1. PRC horizontal receiver needs to be flatly installation to match the best operation.

2. Max. working pressure: 35bar

Technic Parameter

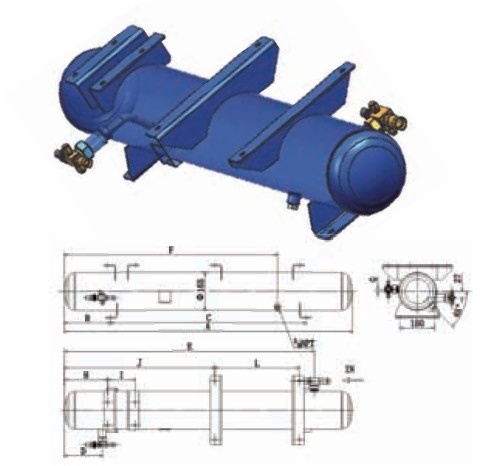

Model	Inlet (in)	Outlet (in)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	H(mm)	I(mm)	J(mm)	L(mm)	Volume
PRC-14CL	5/8	1/2	740	170	400	140	600	415	0	-	-	250	293	14.0L
PRC-19CL	7/8	1/2	1014	207	600	122	892	707	10	84	120	520	367	19.3L
PRC-24CLA	7/8	5/8	1250	200	850	165	1085	925	10	188	120	653	367	24.0L
PRC-24CLB	7/8	5/8	1250	200	850	165	1085	925	10	165	120	677	381	24.0L

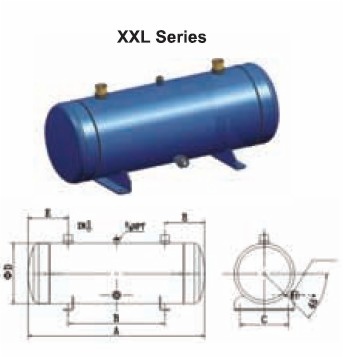

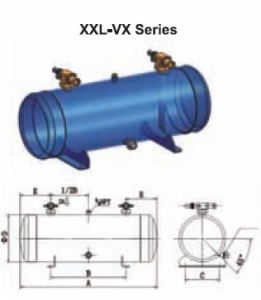

Model	Inlet and OOOutlet (in)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Volume
30L-V7	7/8	900	600	190	219	150	30L
30L-V9	1-1/8	900	600	190	219	150	30L
30L	1-1/8	900	600	190	219	150	30L
35L-V9	1-1/8	1000	700	190	219	150	35L
35L	1-1/8	1000	700	190	219	150	35L
40L-V9	1-1/8	800	440	220	273	180	40L
40L-V11	1-3/8	800	440	220	273	180	40L
40L	1-3/8	800	440	220	273	180	40L
45L-V11	1-3/8	900	540	220	273	180	45L
45L	1-3/8	900	540	220	273	180	45L
50L-V11	1-3/8	1000	640	220	273	180	50L
50L-V13	1-3/8	1000	640	220	273	180	50L
50L	1-5/8	1000	640	220	273	180	50L
55L-V13	1-5/8	1100	740	220	273	180	55L
55L	1-5/8	1100	740	220	273	180	55L
60L-V11	1-3/8	1200	840	220	273	180	60L
60L-V13	1-5/8	1200	840	220	273	180	60L
60L-V17	2-1/8	1200	840	220	273	180	60L
60L	2-1/8	1200	840	220	273	180	60L
