Burn-out Filter Drier
Burn out filter driers is used on the suction pipeline of refrigeration and air-conditioning. The core inside is 70% alumina and 30% molecule. It can absorb the acid and water in the system very efficiency and also can absorb injurant that burnt by the compressor. It can guarantee the whole refrigeration and-conditioning system not be broken. The two sides of the pressure gauge can test the pressure difference of filter drier.
Feature
1. Dual access valves for easy pressure readings
2. High dirt retention, down to 40μm particles, with minimal pressure drop.
3. High absorbent and acid removable capacity
4. Highly corrosion-resistant powder coating finish. Can be used in all environments, including marine applications.
5. Maximum working pressure: 4.7Mpa/680Psig
Technic Parameter
|
Model
|
Connections (in)
|
Liquid Flow Capacity (KW)
|

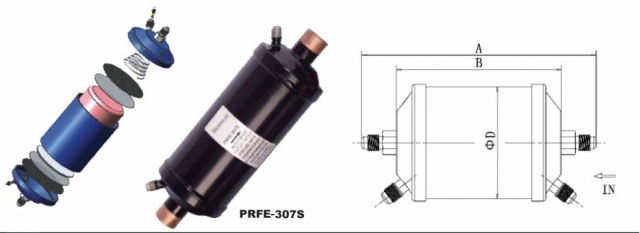

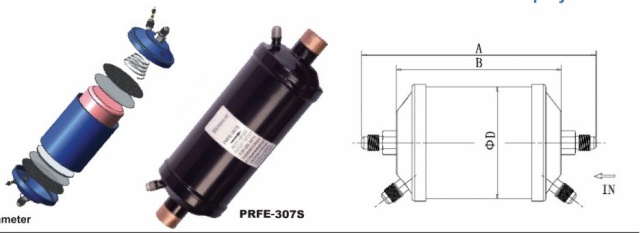

Dimension (mm)
|
|
ODF
|
SAE
|
R-407C/R-22
|
R-134A
|
R-404A
|
A
|
B
|
D
|
|
PRFE-052
|
-
|
1/4
|
5
|
3.3
|
3.3
|
119
|
72
|
63.5
|
|
PRFE-052S
|
1/4
|
-
|
5
|
3.3
|
3.3
|
116
|
|
PRFE-053
|
-
|
3/8
|
5
|
3.3
|
3.3
|
129
|
|
PRFE-053S
|
3/8
|
-
|
5
|
3.3
|
3.3
|
120
|
|
PRFE-082
|
-
|
1/4
|
6
|
3.5
|
4
|
145
|
98
|
|
PRFE-082S
|
1/4
|
-
|
6
|
3.5
|
4
|
142
|
|
PRFE-083
|
-
|
3/8
|
6
|
3.5
|
4.5
|
155
|
|
PRFE-083S
|
3/8
|
-
|
6
|
3.5
|
4.5
|
146
|
|
PRFE-084
|
-
|
1/2
|
10
|
5.5
|
8
|
163
|
|
PRFE-084S
|
1/2
|
-
|
10
|
5.5
|
8
|
148
|
|
PRFE-085S
|
5/8
|
-
|
15
|
7
|
10
|
146
|
|
PRFE-162
|
-
|
1/4
|
10.5
|
5
|
7.5
|
159
|
112
|
76
|
|
PRFE-162S
|
1/4
|
-
|
10.5
|
5
|
7.5
|
159
|
|
PRFE-163
|
-
|
3/8
|
13
|
5.5
|
8
|
169
|
|
PRFE-163S
|
3/8
|
-
|
13
|
5.5
|
8
|
160
|
|
PRFE-164
|
-
|
1/2
|
15
|
6
|
8.5
|
177
|
|
PRFE-164S
|
1/2
|
-
|
15
|
6
|
8.5
|
162
|
|
PRFE-165
|
-
|
5/8
|
20
|
9.5
|
13
|
185
|
|
PRFE-165S
|
5/8
|
-
|
20
|
9.5
|
13
|
160
|
|
PRFE-166
|
-
|
3/4
|
17
|
10
|
12
|
191
|
|
PRFE-166S
|
3/4
|
-
|
22
|
12
|
15
|
166
|
|
PRFE-167S
|
7/8
|
-
|
24
|
13
|
17
|
172
|
|
PRFE-302
|
-
|
1/4
|
14.5
|
7
|
9
|
232
|
185
|
|
PRFE-303
|
-
|
3/8
|
14.5
|
7
|
9
|
242
|
|
PRFE-303S
|
3/8
|
-
|
16
|
8.5
|
11
|
233
|
|
PRFE-304
|
-
|
1/2
|
17
|
10
|
15
|
250
|
|
PRFE-304S
|
1/2
|
-
|
17
|
10
|
15
|
235
|
|
PRFE-305
|
-
|
5/8
|
18
|
12.5
|
15
|
258
|
|
PRFE-305S
|
5/8
|
-
|
18
|
12.5
|
15
|
233
|
|
PRFE-306
|
-
|
3/4
|
22
|
14
|
19
|
264
|
|
PRFE-306S
|
3/4
|
-
|
22
|
14
|
19
|
239
|
|
PRFE-307S
|
7/8
|
-
|
26
|
16
|
22
|
245
|
|
PRFE-309S
|
1-1/8
|
-
|
31
|
20
|
27
|
245
|
|
Model
|
Connections (in)
|
Liquid Flow Capacity (KW)
|
Dimension (mm)
|
|
ODF
|
SAE
|
R-407C/R-22
|
R-134A
|
R-404A
|
A
|
B
|
D
|
|
PRFE-413
|
-
|
3/8
|
19
|
14
|
17
|
249
|
192
|
89
|
|
PRFE-413S
|
3/8
|
-
|
19
|
14
|
17
|
240
|
|
PRFE-414
|
-
|
1/2
|
25
|
14.5
|
23
|
257
|
|
PRFE-414S
|
1/2
|
-
|
25
|
14.5
|
23
|
242
|
|
PRFE-415
|
-
|
5/8
|
26.5
|
16
|
24.5
|
265
|
|
PRFE-415S
|
5/8
|
-
|
26.5
|
16
|
24.5
|
240
|
|
PRFE-416
|
-
|
3/4
|
29.5
|
17.5
|
25
|
271
|
|
PRFE-416S
|
3/4
|
-
|
29.5
|
17.5
|
25
|
246
|
|
PRFE-417S
|
7/8
|
-
|
30
|
18
|
25
|
252
|
|
PRFE-419S
|
1-1/8
|
-
|
32
|
21
|
27
|
252
|
|
Remark: Refrigerant quantity capacity: evaporating temperature= -15℃, liquid temperature= 30℃, drop pressure ΔP=0.07bar
|
