Shaded-pole Motor
YZF Series shaded-pole motors are excellent technics. Stable performance. We adopt high quality materials and there are several forms for choose, The ambient temperature of the shaded-pole motor is used from -25℃ to +50℃, insulation rating class B, protection grade IP42 ,and it has been widely used in condensers, evaporators and other equipments
Features
l Each motor has a ground line
l Thermal protection: Each motor below 10W with impedance protection, in addation, all motor above 10W equipped with thermal protector (135℃±5℃)

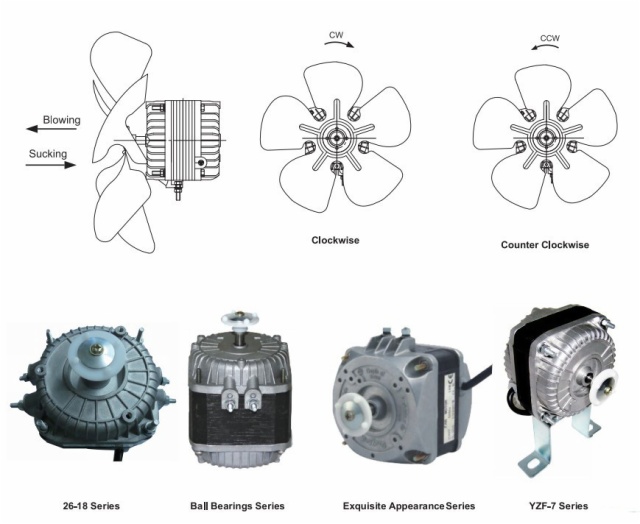

l Installation by screw holes on the end cover, or bracket installation, grid installation, flanged installation, also according to the special requirements
l Custom-made motor with different voltage, frequency, wire length, bearings, special use of environment or other requirements are available
Shaded-pole Motor Model Introduction
YZF - 5 - 13 - 00
① ② ③ ④
① Single-phase AC shade-pole motor
② Rated output power
③ Silicon steel sheet thickness in mm
④ Distance of the installation between the feet
|
Model
|
Voltage
V
|
Frequency
Hz
|
Current
A
|
Power Input
W
|
Power Output
W
|
Speed
rpm
|
Air Flow
m3/h
|
Blade Size
mm
|
Operative Range
Pa
|
|
YZF-5-13
|
220
|
50
|
0.20
|
33
|
5
|
1300
|
280
|
170
|
0-25
|
|
220
|
60
|
0.20
|
33
|
5
|
1500
|
320
|
170
|
0-30
|
|
220
|
50/60
|
0.20
|
33
|
5
|
1300/1500
|
320/340
|
170
|
0-25
|
|
110
|
60
|
0.45
|
33
|
5
|
1500
|
420
|
200
|
0-25
|
|
YZF-7-16
|
220
|
50
|
0.23
|
40
|
7
|
1300
|
380
|
200
|
0-35
|
|
YZF-10-20
|
220
|
50
|
0.23
|
40
|
10
|
1300
|
500
|
200
|
0-45
|
|
220
|
60
|
0.25
|
40
|
10
|
1500
|
570
|
200
|
0-55
|
|
220
|
50/60
|
0.23
|
40
|
10
|
1300/1500
|
500/570
|
200
|
0-30
|
|
110
|
50
|
0.45
|
40
|
10
|
1300
|
580
|
230
|
0-20
|
|
110
|
60
|
0.5
|
40
|
10
|
1500
|
530
|
200
|
0-30
|
|
YZF-16-25
|
220
|
50
|
0.43
|
60
|
16
|
1300
|
830
|
230
|
0-40
|
|
220
|
60
|
0.48
|
60
|
16
|
1500
|
730
|
230
|
0-50
|
|
220
|
50/60
|
0.46
|
60
|
16
|
1300/1500
|
760/850
|
230
|
0-45
|
|
110
|
60
|
0.80
|
60
|
16
|
1500
|
630
|
230
|
0-25
|
|
YZF-18-30
|
220
|
50
|
0.48
|
75
|
18
|
1300
|
940
|
250
|
0-40
|
|
220
|
60
|
0.50
|
75
|
18
|
1500
|
870
|
250
|
0-50
|
|
110
|
50
|
0.90
|
75
|
18
|
1300
|
1030
|
300
|
0-30
|
|
110
|
60
|
0.95
|
75
|
18
|
1500
|
730
|
250
|
0-30
|
|
YZF-34-45
|
220
|
50
|
0.75
|
120
|
34
|
1300
|
1610
|
300
|
0-45
|
|
220
|
60
|
1.00
|
160
|
34
|
1500
|
1560
|
300
|
0-55
|
|
110
|
60
|
2.10
|
120
|
34
|
1500
|
1570
|
300
|
0-40
|
